Quick Base Plates
METROLOGYBASE offers Quick Base Plate systems to reduce setup times and increase speed & flexibility.
METROLOGYBASE Quick Base Plates
METROLOGYBASE designed Quick Base Plates to increase speed and flexibility when loading parts onto CMM.
Features;
•Aluminum plate
•Hard anodized surface finish
•Scratch resistant
•Alphanumeric grid pattern
•M6 or M8 thread options
•Built-in magnets on plates
•Quick locating rail
•Built-in pins on rail
Mounting on CMM’s Granite Plate;
Quick Base Rail can be located and mounted on the CMM’s granite with threads. Using Quick Base Rail’s pins and magnets on plates, you can easily setup your Quick Base Plates.
Fast, Easy & Robust
METROLOGYBASE Quick Base Plate system allows user to setup parts on CMM’s granite plate very fast and easy. In addition to being easy and fast system, Quick Base Plates are robust fixturing solutions.
Accurate and Repeatable
With Quick Base Plate system, after first inspection, user can change inspected part and put new part on same position easily and accurately.
Multiple Parts

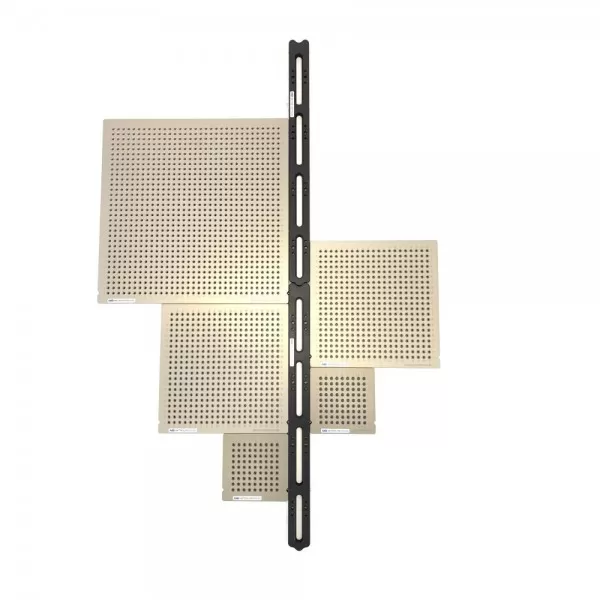

METROLOGYBASE Quick Base Rail allows mounting multiple Quick Base Plates on both sides. You can easily switch between measured parts.
Maximum Measurement Volume
With increasing the number of rails and plates, you can improve your CMM’s measuring volume capacity with less effort. You can make any configuration you want when location your parts on granite plate.
Technical Specifications
| Product Number | Thread | Height | Width | Length | Hole Spacing |
|---|---|---|---|---|---|
| MB-QBP-13150150-12-M6 | M6 | 12.7 mm | 150 mm | 150 mm | 12.5 mm |
| MB-QBP-13300300-12-M6 | M6 | 12.7 mm | 300 mm | 300 mm | 12.5 mm |
| MB-QBP-13450450-12-M6 | M6 | 12.7 mm | 450 mm | 450 mm | 12.5 mm |
| MB-QBP-13300300-15-M8 | M8 | 12.7 mm | 300 mm | 300 mm | 15 mm |
| MB-QBP-13450450-15-M8 | M8 | 12.7 mm | 450 mm | 450 mm | 15 mm |
