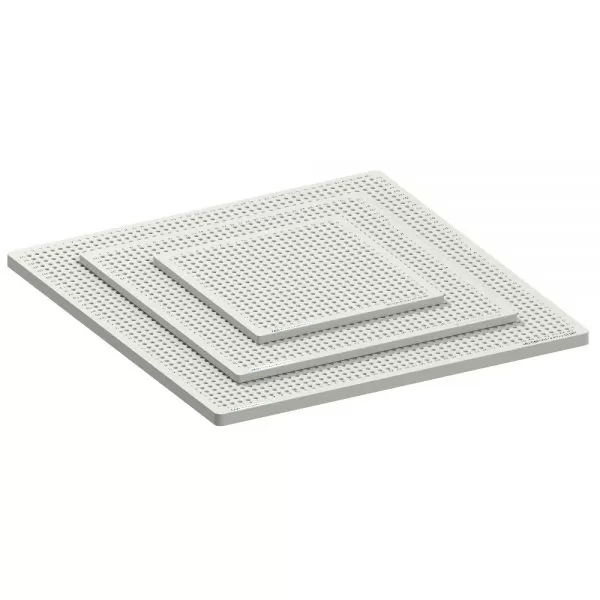

CMM Base Plate

Product Number : -
Category : CMM Base Plates

METROLOGYBASE offers a wide variety of CMM Base Plates to simplify your fixturing.

METROLOGYBASE CMM Base Plates are available in sizes from 300 mm x 300 mm to 900 mm x 1200 mm. All plates designed to allow mounting very small parts to heavy components.

Features;
•    Aluminum plate
•    Hard anodized surface finish
•    Scratch resistant
•    Alphanumeric grid pattern
•    M6 or M8 thread options

Mounting on CMM’s Granite Plate;
When using your CMM Base Plate, fixing your plate on granite surface is very important for accuracy and repeatability during your inspection. You can fix Base Plate with any plate clamps.

Product Number	Thread	Width	Depth	Thickness	Thread Spacing
MB-CBP-13300300-12-M6	M6	300 mm	300 mm	13 mm	12.5 mm
MB-CBP-13450450-12-M6	M6	450 mm	450 mm	13 mm	12.5 mm
MB-CBP-19600600-12-M6	M6	600 mm	600 mm	19 mm	12.5 mm
MB-CBP-19750750-12-M6	M6	750 mm	750 mm	19 mm	12.5 mm
MB-CBP-197501000-12-M6	M6	750 mm	1000 mm	19 mm	12.5 mm
MB-CBP-199001200-12-M6	M6	900 mm	1200 mm	19 mm	12.5 mm
MB-CBP-13300300-15-M8	M8	300 mm	300 mm	13 mm	15 mm
MB-CBP-13450450-15-M8	M8	450 mm	450 mm	13 mm	15 mm
MB-CBP-19600600-15-M8	M8	600 mm	600 mm	19 mm	15 mm
MB-CBP-19750750-15-M8	M8	750 mm	750 mm	19 mm	15 mm
MB-CBP-197501020-15-M8	M8	750 mm	1020 mm	19 mm	15 mm
MB-CBP-199001200-15-M8	M8	900 mm	1200 mm	19 mm	15 mm
