Heavy Duty Tripods

Product Number : -
Category : Heavy Duty Metrology Tripods

The tripod provides a solid and stable platform to which loads with compatible tripod mounts can be quickly and easily mounted. Enhance your surveying research using METROLOGYBASE Portable Heavy Duty Tripods.

Choose your metrology tripod model

METROLOGYBASE is an engineering & manufacturing company specialized in metrology support equipment.

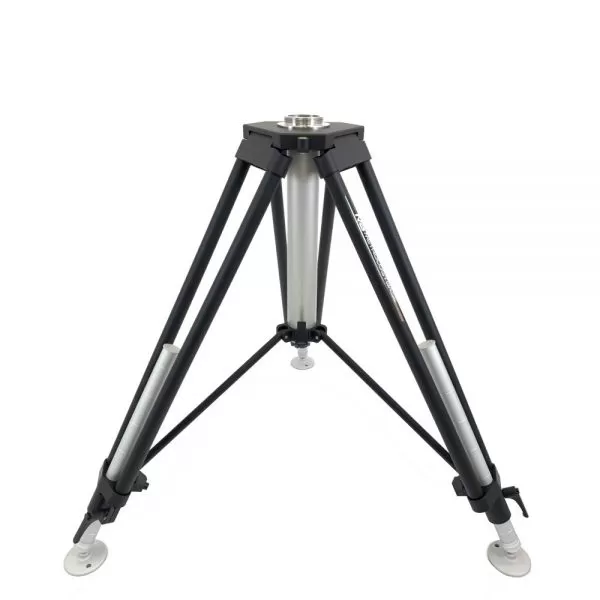

Tripod provides a robust stable platform on which payloads with compatible tripod interfaces can be quickly and easily mounted. Using METROLOGYBASE Portable Heavy Duty Tripods improve your flexibility at measurement area. METROLOGYBASE has designed these portable heavy duty metrology tripods for functionality, portability and repeatable measurement. Portable Heavy Duty Tripods are available in a number of standard configurations.

Short Fixed

Tall Fixed

Short Adjustable

Tall Adjustable

Aluminum

Carbon Fiber

Why METROLOGYBASE heavy duty tripods?

METROLOGYBASE Portable Heavy Duty Tripods have been designed for Portable CMMs. Portable Heavy Duty Tripods are ideal where portability and high stiffness is of primary importance for precision metrology equipment.

Extraordinary sturdiness and rigidity
Rugged construction
Ideal indoor and outdoor use
Adjustable pads on each leg
Point type stainless steel feet are also available for outdoor use

Construction

All parts are 100% CNC MACHINED from solid block materials (No casting). Made from high strength 6061 T6 series aircraft grade aluminum and corrosion resistant stainless steel.

Adapter

Heavy Duty Portable Metrology Tripods can be used with any product having an internal 3½”-8 thread.

Easy Lock

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Spirit Level

Heavy Duty Metrology Tripods comes with spirit level. You can make horizontal leveling of your tripod easily with spirit level.

Short or Tall

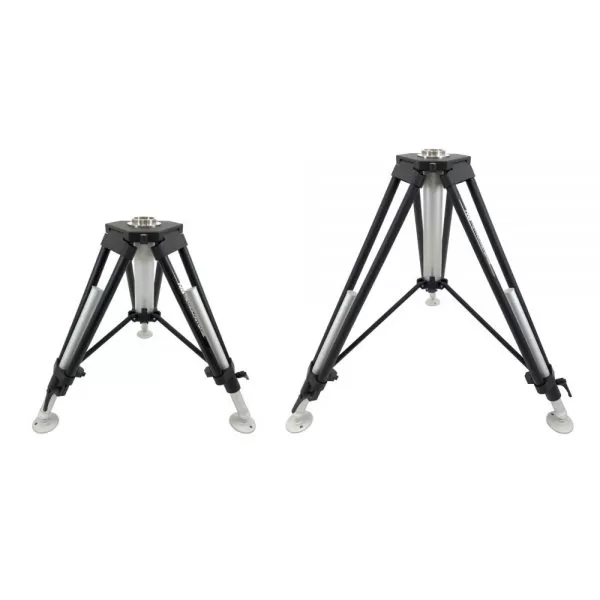

Heavy Duty Tripods are available in a short or tall version. The double upper leg section and the adjustable instrument column of the tall version are longer.

Fixed or Adjustable

Fixed tripod’s adapter is mounted directly to the top of the stand. Adjustable model has hand wheel driven worm gear column for up and down adjustment of the equipment. It enables vertical adjustment of instrument easily.

Aluminum or Carbon Fiber

Double upper legs can be aluminum or carbon fiber. Carbon fiber legs option have lower weight and give thermal stability advantage.

Interchangeable Feet

Pad feet are standart on heavy duty portable metrology tripods. They have thin rubber pad on bottom and work well on smooth surfaces. *Point type stainless steel feet are also available for uneven surfaces. They are easily interchangeable. (*Accessory)

Portability

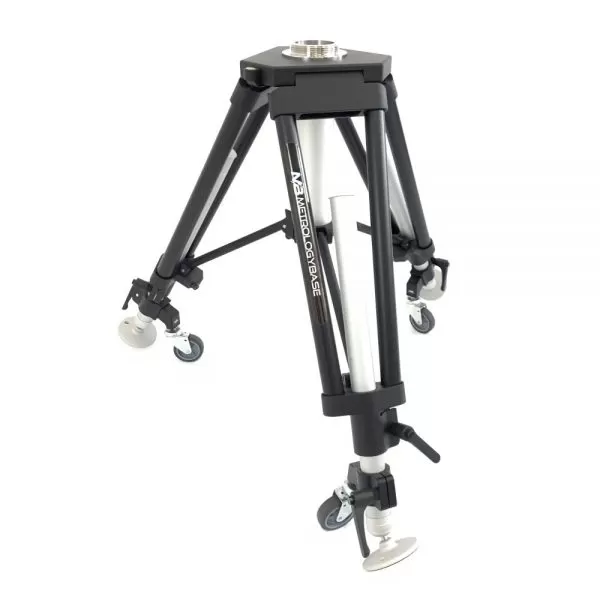

*Wheels can be mounted to the lower legs of the heavy duty portable metrology tripods. They enable easy transportation of tripod and insturument on smooth surfaces.(*Accessories)

Horizontal Leveling

You can easily make horizontal fine leveling up to 10º with *3 Way Leveling Head. It allows correcting horizontal plan without acting on the legs height and without compromise for torsional rigidity. (*Accessories)

Product Number	Short/Tall	Fixed/Adjustable	Upper Legs	Min. Height	Max. Height	Weight	Load Capacity
MB-HDT-SF-AL	Short	Fixed	Aluminum	628 mm	988 mm	16 Kg	80 Kg
MB-HDT-TF-AL	Tall	Fixed	Aluminum	926 mm	1288 mm	19.2 Kg	80 Kg
MB-HDT-SF-CF	Short	Fixed	Carbon Fiber	628 mm	988 mm	14 Kg	80 Kg
MB-HDT-TF-CF	Tall	Fixed	Carbon Fiber	926 mm	1288 mm	17 Kg	80 Kg
MB-HDT-SA-AL	Short	Adjustable	Aluminum	739 mm	1395 mm	19.8 Kg	50 Kg
MB-HDT-TA-AL	Tall	Adjustable	Aluminum	1080 mm	1698 mm	23 Kg	50 Kg
MB-HDT-SA-CF	Short	Adjustable	Carbon Fiber	739 mm	1395 mm	18 Kg	50 Kg
MB-HDT-TA-CF	Tall	Adjustable	Carbon Fiber	1080 mm	1698 mm	21 Kg	50 Kg
